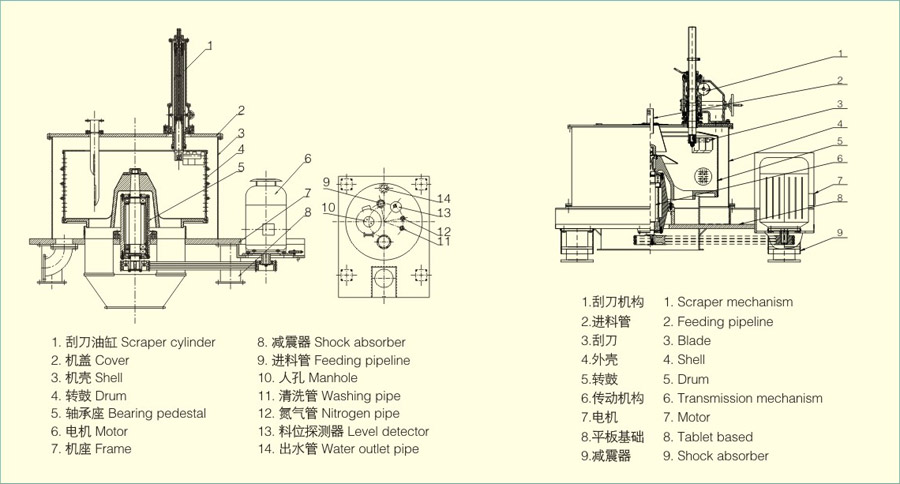

Product structure principle
■ Frequency conversion control is adopted, the start-up is smooth, and the separation factor is adjustable;
■ PLC control is adopted, and the whole process of program setting, feeding, primary filtration, washing, fine filtration, and unloading is automatically controlled;
■ The base and the casing are integrally welded structures with high bearing strength;
■ The base and the casing are flat structures, which not only lower the center of gravity of the machine and make the machine run smoothly, but also the flat base can be used as an operating platform for easy operation;
■ Equipped with high-viscosity liquid damping shock absorber, it can more effectively eliminate vibration and simplify future maintenance;
■ Closed structure, silicone rubber or fluororubber seals are used to prevent toxic and highly corrosive materials from leaking and injuring people, with a high safety factor.
■ Adopting electromechanical integrated material detector, good reliability;
■ Energy consumption braking, non-contact braking method, no friction dust pollution;
■ Safety protection, motor overheating protection, scraper rotation, lifting mechanical and electrical dual control, scraper and drum interlocking protection.
Optional configuration
■ Cleaning spray system.
■ Nitrogen protection system.
■ Radio frequency admittance material range control.
■PLC program control.
■Hydraulic action system.
■Gas-assisted scraper.
■No foundation form (equipped with vibration isolation chassis + shock absorber).
■According to the anti-corrosion requirements of the separated materials by the user, corresponding stainless steel materials (SUS304, 321, 316L, 904L, duplex stainless steel, titanium, etc.) are used.
Main technical parameters:
